Keychron V3 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron V3 QMK Custom Mechanical Keyboard ISO Layout Collection - Fully Assembled Knob (Frosted Black)-ABS Keycaps / Nordic-ISO / Keychron K Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- ABS plastic housing
- The keyboard PCB, screw-in stabs, and the steel plate
- OSA profile keycaps (including Mac & Windows keycaps)
- Keychron K Pro switches
The difference between Fully Assembled Knob (Frosted Black)-ABS Keycaps and Fully Assembled Knob (Frosted Black)-PBT Keycaps is the type of keycaps they use.
ABS Keycaps: Backlight shine-through
PBT Keycaps: Non-shine-through
No discount codes can be used for V3. Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron V3 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron V3
ISO Layout Collection
The V3 is a classic TKL (80%) layout custom keyboard with many premium features like QMK/VIA support, OSA keycaps, screw-in stabs, etc., which provides endless possibilities and a comfortable typing experience!
Frosted Black-PBT Keycaps (Non-Shine-Through)
Frosted Black-ABS Keycaps (Shine-Through)
*Fully Assembled-ABS Keycaps Version features OSA Shine-through ABS keycaps.
*Fully Assembled-PBT Keycaps Version features OSA double-shot PBT keycaps, which are non-shine-through.
Choose the keycaps, switches and more accessories for your V3 ISO layout keyboard
OSA Profile Keycaps
To further leverage your typing experience, the V3 ISO version comes with our unique OSA profile (OEM profile with spherical angle) keycaps.
Shine-Through ABS Keycaps
ABS keycaps aim to provide a comfortable fingertip feel and a fantastic backlight shine-through effect.
Double-Shot PBT Keycaps
The double-shot PBT keycaps will provide excellent oil resistance, and prevent the legends from fading out.
Keychron V3 ISO Layout Versions
These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.
🇬🇧 UK-ISO Layout (ABS)

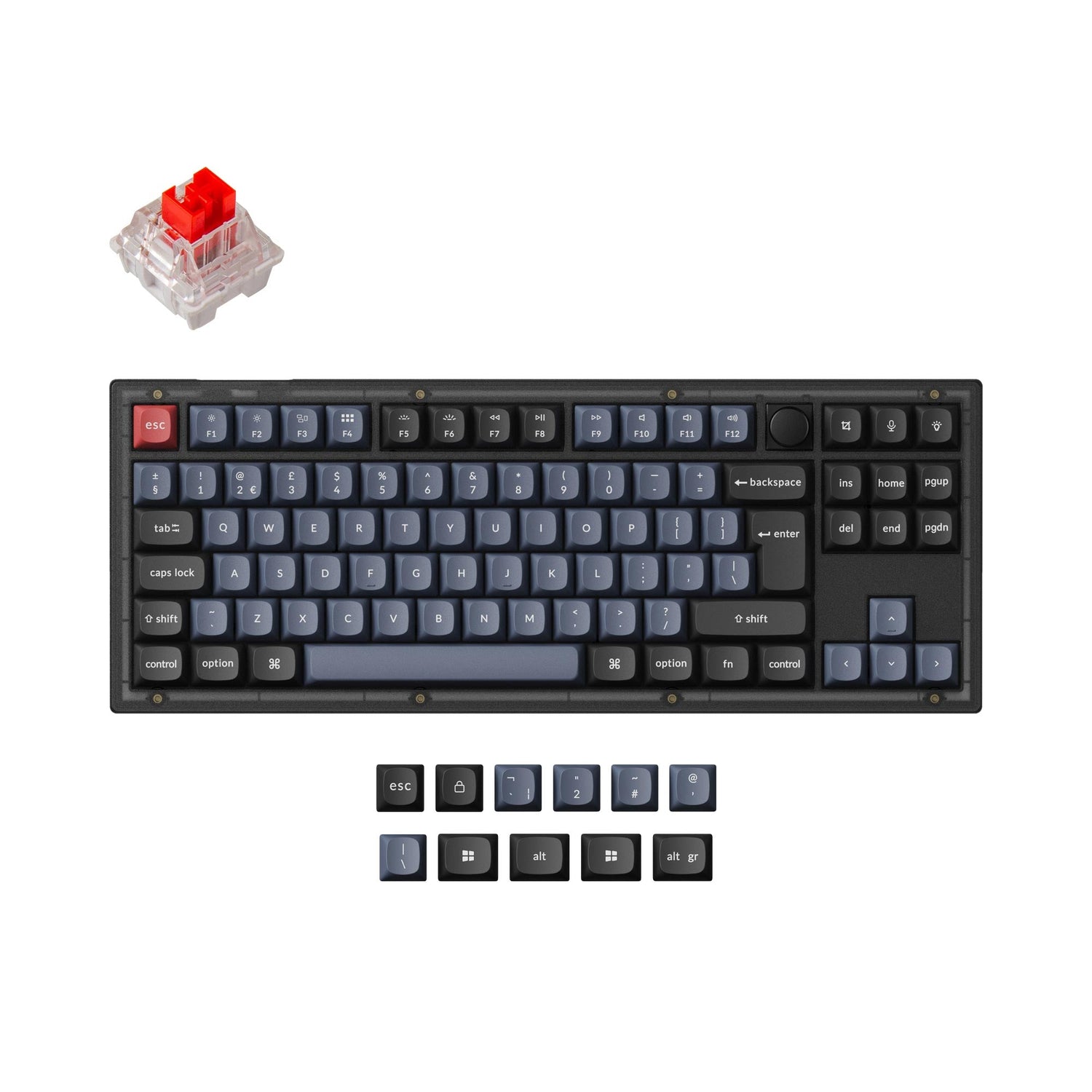

🇬🇧 UK-ISO Layout (PBT)

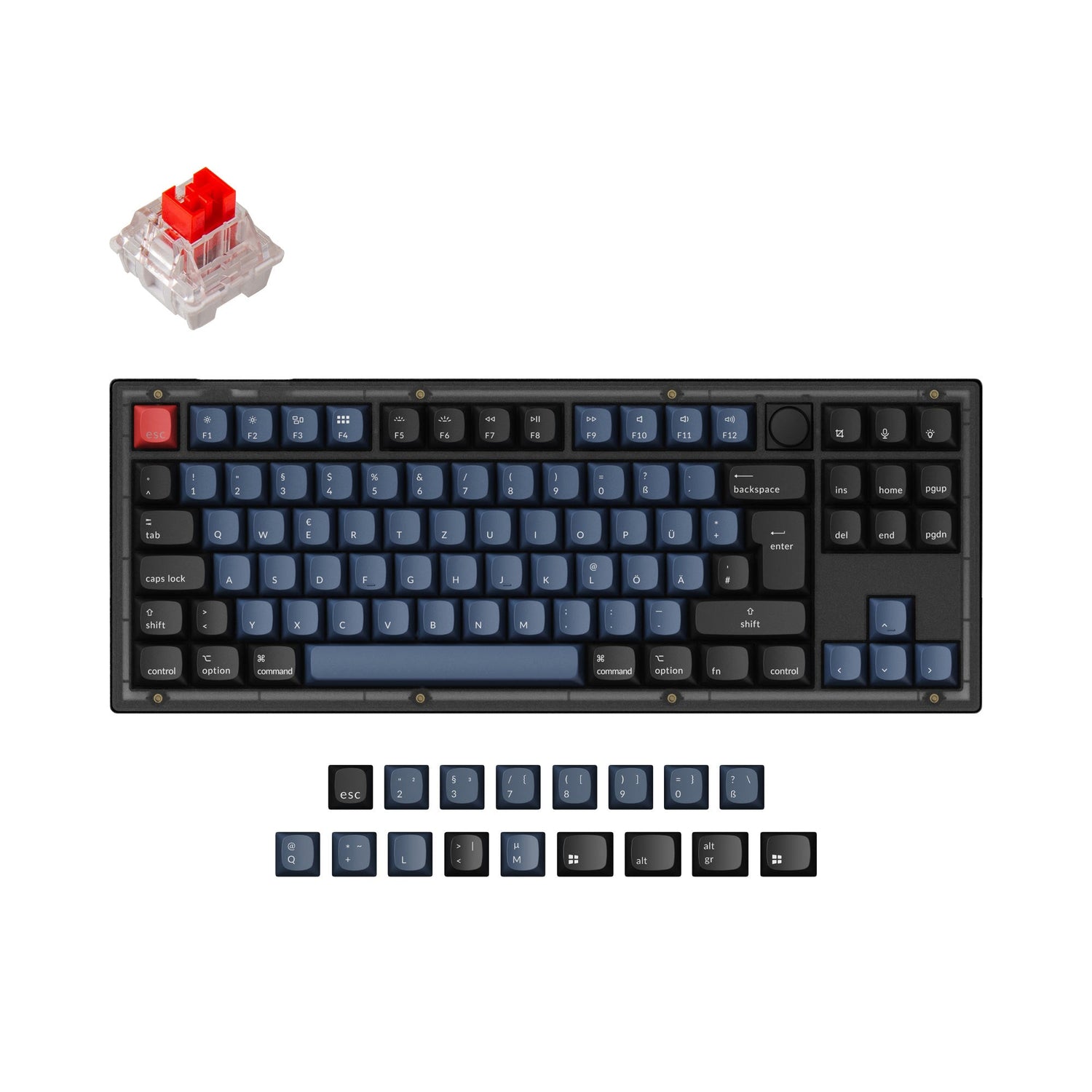

🇩🇪 German DE-ISO Layout (ABS)
🇩🇪 German DE-ISO Layout (PBT)
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.
Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Click here to use Keychron Launcher* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V3 also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 140.56 mm |
|---|---|
| Length | 366.70 mm |
| Front Height | 19.44 mm (without keycaps) |
| Back Height | 26.83 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 3.5° / 7.26° / 9.69° |
| Weight | 1120 g ± 10 g (Fully Assembled Version) |
| Body Material | ABS Plastic |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Mount Style | Tray Mount Design |
| Keycaps (Fully Assembled Version) | OSA Profile ABS backlight shine-through keycaps / OSA Profile PBT non-shine-through keycaps |
|---|---|
| Switches | Keychron K Pro |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
| Layout | DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO |
Learn more about the Keychron V3 such as the V3 shortcuts, assembling the V3, factory reset, and more in the FAQ section.
