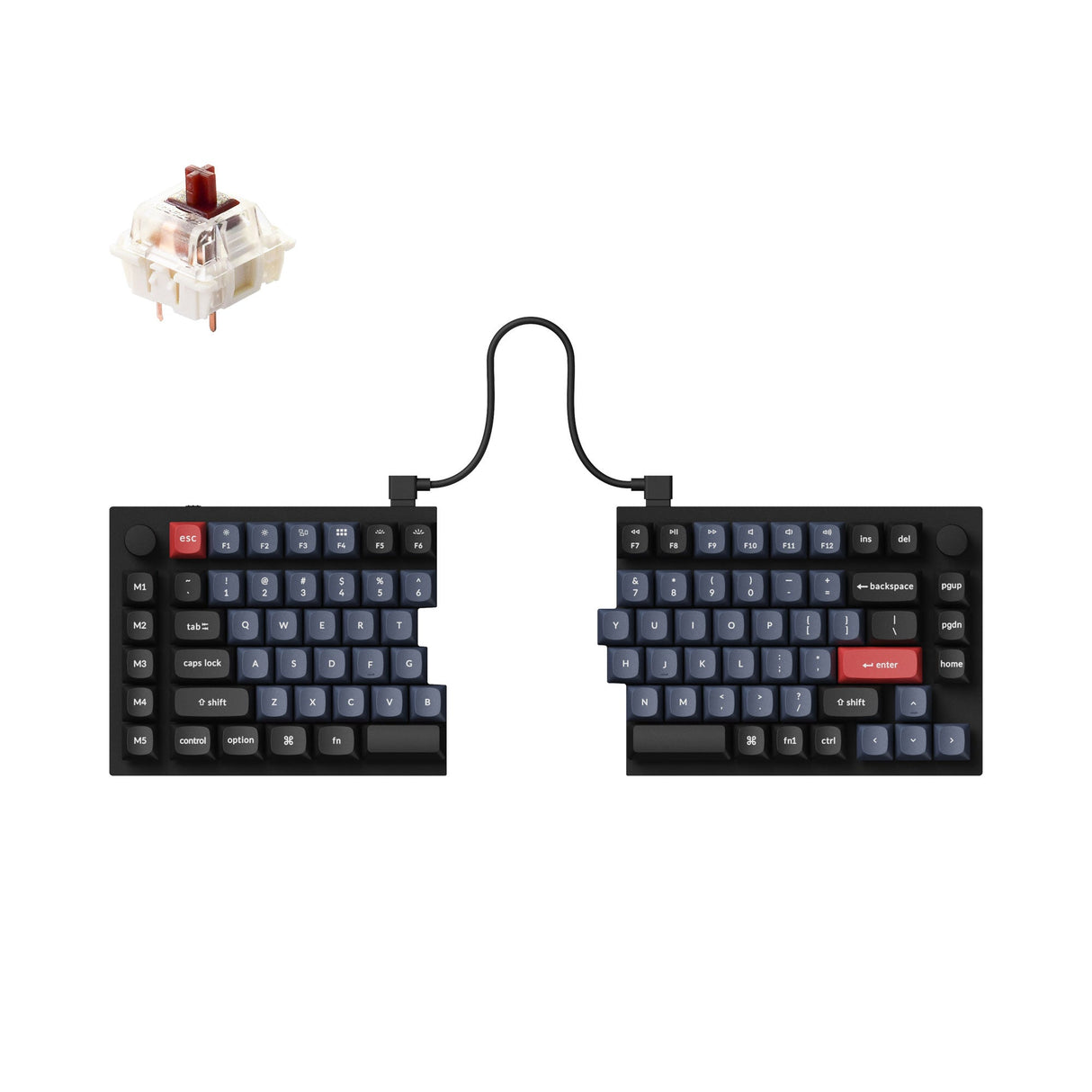

Keychron Q11 QMK Custom Mechanical Keyboard (US ANSI Layout)

SKU: Q11-M1
$ 3,874.00

Type
Color
Switches


The fully assembled version includes:
  • The keyboard PCB and case (the plate is integrated with the case).
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps).
  • Gateron G Pro switches.

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q11.

Please drop your email on "Notify Me When Available" if the product model is out of stock.



Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

Keychron Q11

Coming in a 75% Layout and a split design, the Q11 helps you to explore the angles and positions that fit you the best. With its full metal CNC machined body, QMK/VIA support, and unique design, the Q11 is ideal for fulfilling your typing needs!

Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

Split Design

With a split layout, the Q11 allows you to position each side where you feel most sensible and ergonomic. You can also use it as a non-split keyboard by linking the two halves with a bridge cable.

Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard
Left half of Keychron Q11

Use the left half solely.

Right half of Keychron Q11

Use the right half solely.

Features of Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard
Customize Your Q11

Choose the switches and more keyboard accessories for your Q11

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q11.

Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Structure of Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard
structureofthekeychronq11mobileview-1677228186551__PID:2c4e928a-79de-4412-8fc7-76525086a3e0
Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard
Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q11 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Rotary Encoder function of Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

You can easily customize the Q11's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

launcher__PID:ee3d1338-5140-4586-933d-07740eae7fcd

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program with QMK & LauncherClick here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone US Layout of Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

By optimizing the switch mold, the Gateron G Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the G Pro switches (excluding the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Gateron G Pro Switch Features
Screw- in PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q11 also supports third-party screw-in PCB stabilizers.

What's in the box?

Pack list of Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard
Barebone pack list of Keychron Q11 75% Layout Split QMK/VIA Custom Mechanical Keyboard

Specs

Width134 mm
Length345 mm
Front Heigh9.8 mm (without keycaps)
Back Height16.3 mm (without keycaps)
Feet Height1.5 mm
Angle2.8°
Weight1186 g ± 10g (Fully Assembled Version)
Body MaterialFull CNC machined aluminum
StabsScrew-in PCB stabs
Polling Rate1000Hz
Keycaps (fully assembled version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
SwitchesGateron G Pro (Fully Assembled Version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
Operating Environment-10℃ to 50℃
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter

Learn more about the Keychron Q11 such as the Q11 shortcuts, assembling the Q11, factory reset, and more in the FAQ section.
