Keychron Q1 HE QMK Wireless Custom Keyboard
Keychron Q1 HE QMK Wireless Custom Keyboard - Fully Assembled Knob / Shell White / Gateron Double-Rail Magnetic Nebula Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Fully Assembled version includes:
- The keyboard PCB, the case, and the aluminum plate.
- Keycaps (included Mac & Windows keycaps).
- Adjustable-actuation-point Gateron 2.0 magnetic switches.
No discount codes can be used for the Q1 HE.
This is a pre-order product, and we plan to start shipping in April 2024.
Keychron Q1 HE QMK Wireless Custom Keyboard
Keychron Q1 HE

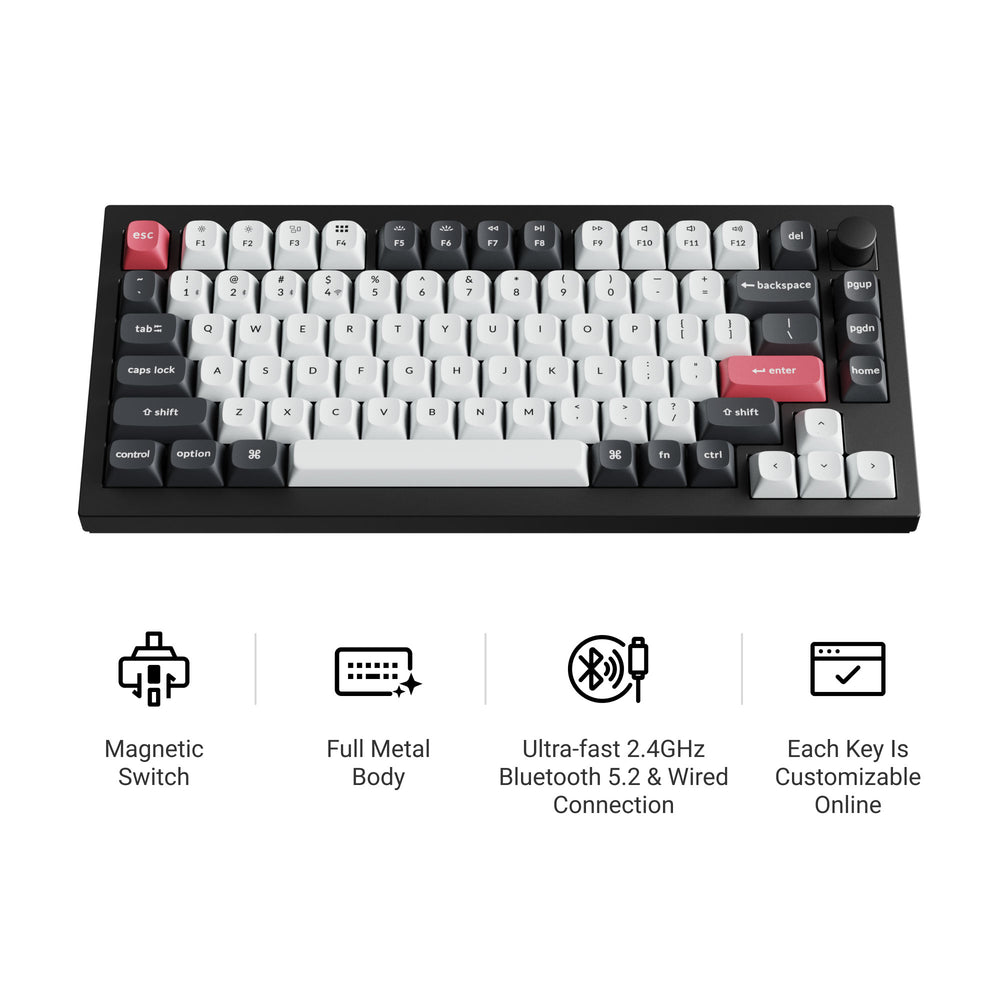

Meet the Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.
In addition to the Hall Effect magnetic switches, the Q1 HE introduces a 2.4G connection mode with an impressive 1000Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.
Choose the keycaps, switches, and more accessories for your Q1 HE.

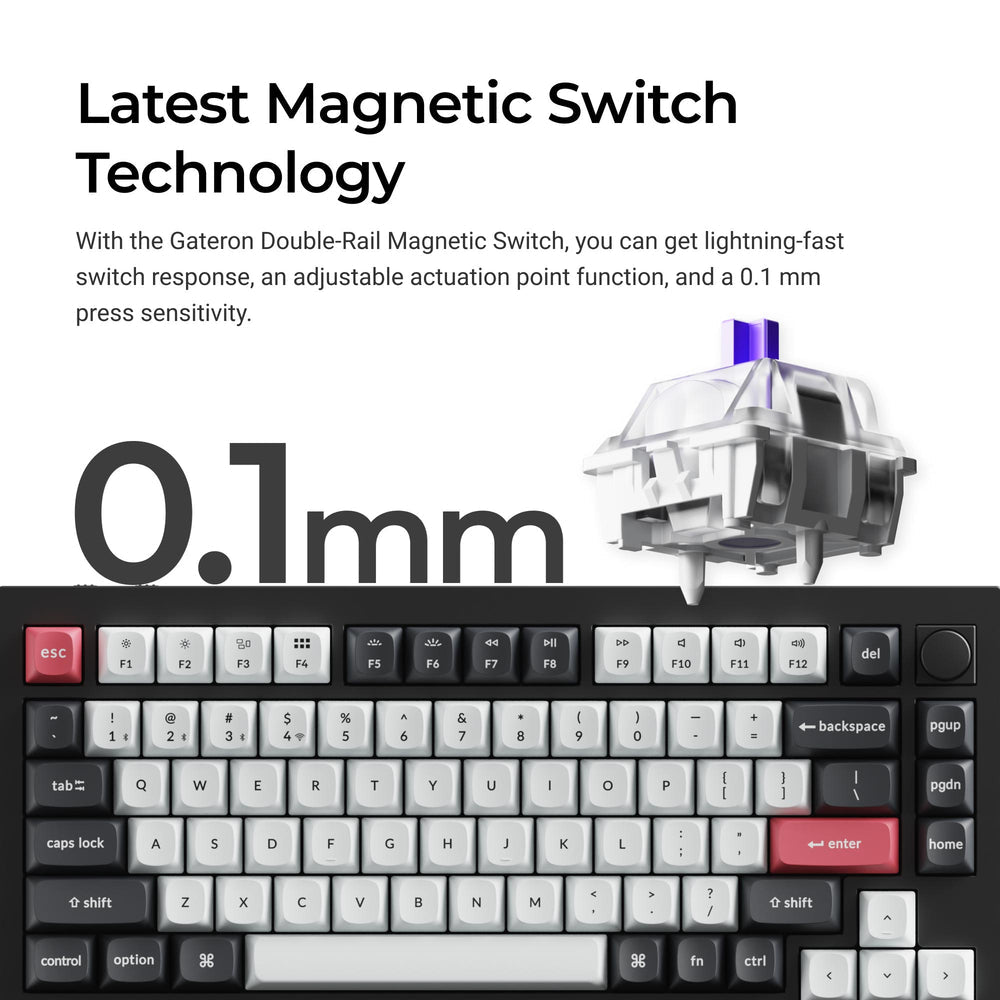

2.0 Magnetic Hall Sensor Switches
With the first invented dual-rail structure, extended tube structure design, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.
Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.
Add Gateron Double-Rail Magnetic Switch to cart
Adjustable Actuation Point
Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.5 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

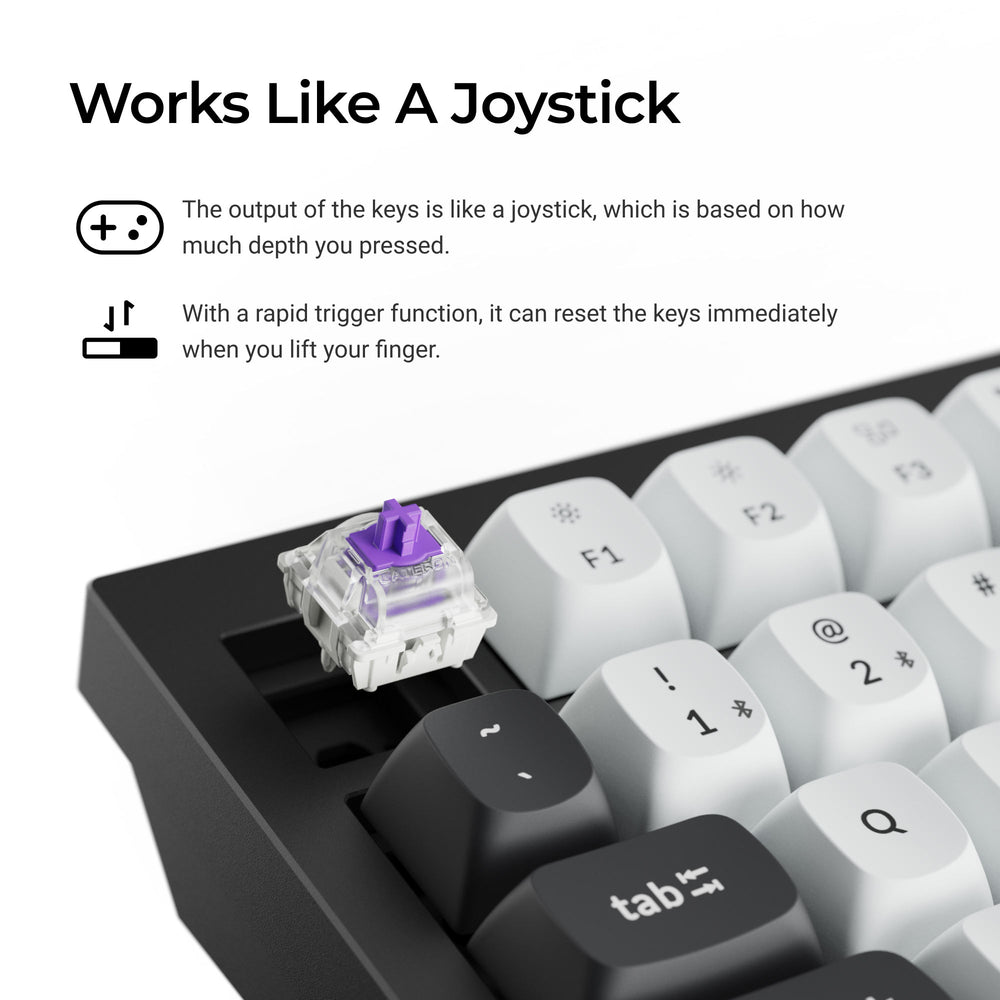

Dynamic Rapid Trigger
Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.
Multiple Actions, One Keystroke
Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

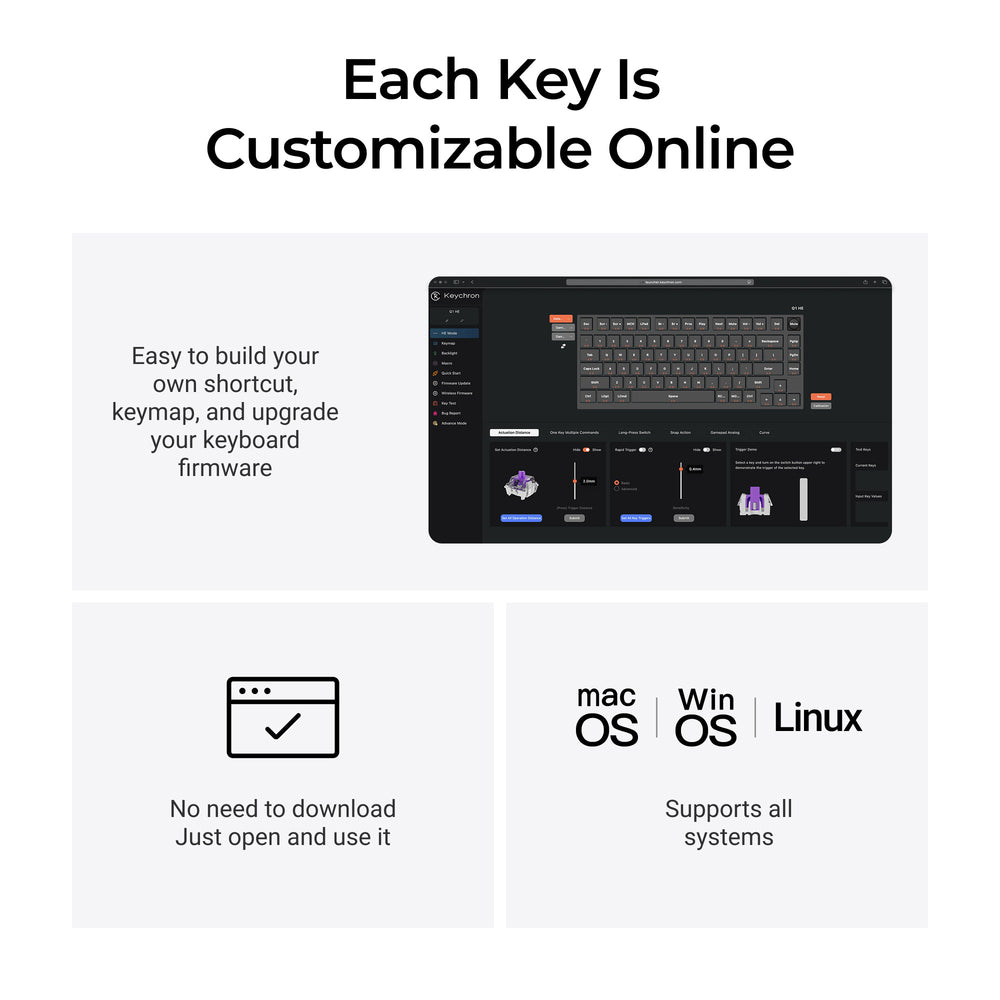

Reassign Keys By The Keychron Launcher Web App
With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

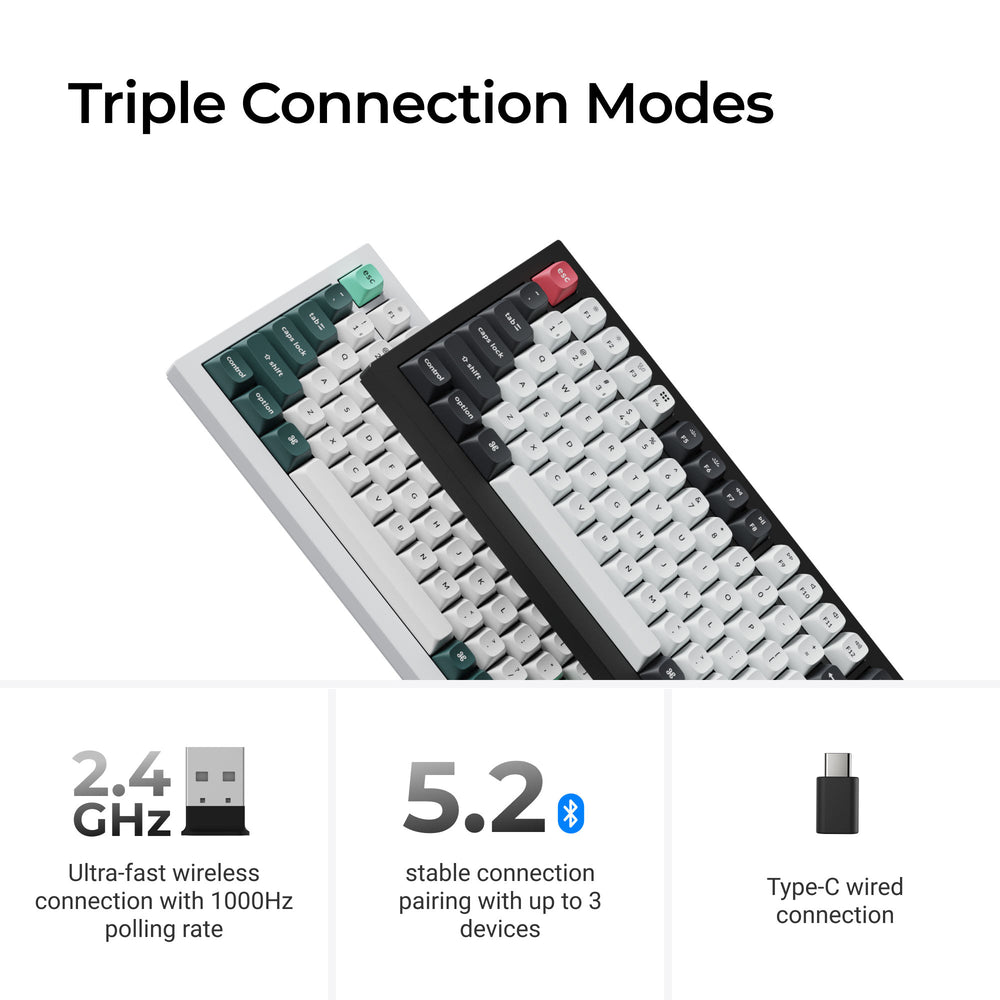

2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the Q1 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices.
Reassign Keys By The Web App
With the Keychron web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

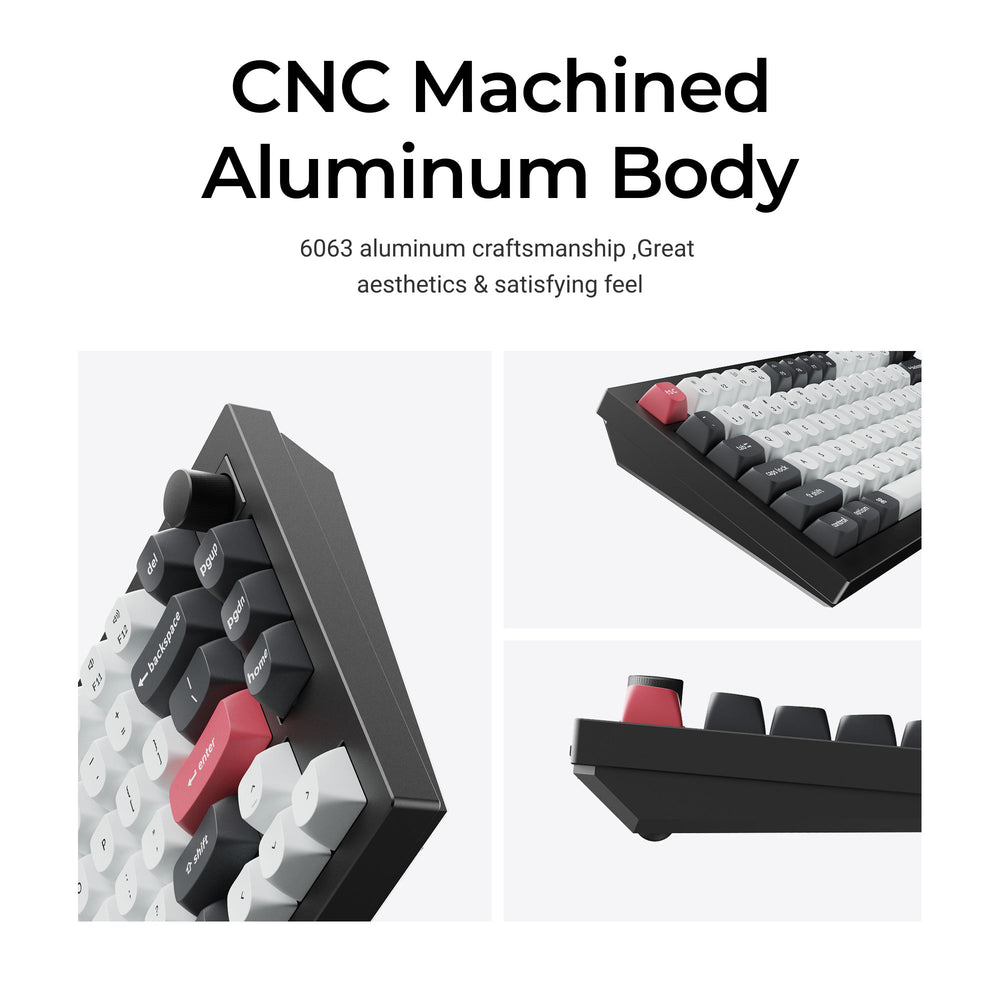

A Piece Of Metal Art
The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.
Customize Every Part
To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.
Double-Gasket Design
Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad.
An Epic Core Inside The Keyboard
Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.
Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
OSA Profile Double-shot PBT Keycaps
It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
Programmable Knob
Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q65 Max's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Setting the macros for "zoom in/out"
Using the knob as "zoom in/out"
Program Q65 Max with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Get the V1 keymap working on VIA
To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V1 keymap working on VIA.
Since the VIA code for the V1 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V1 keymap.
Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your keyboard to download.
V1 Knob Version Keymap JSON Files
V1 Non-Knob Version Keymap JSON Files
Get the Q1 HE keymap working on VIA
Since the VIA code for the Q1 HE is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q1 HE keymap working on VIA.
South-facing RGB LED Lights
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth.
What's in the box?
Specs
| Width | 145 mm |
|---|---|
| Length | 327.5 mm |
| Front Height | 22.6 mm (without keycaps) |
| Back Height | 35.8 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 5.2° |
| Weight | 1735 g ± 10 g (Fully Assembled Version) |
| Body Material | Aluminum |
| Plate | Aluminum |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| Connectivity | 2.4 GHz/Bluetooth/ Type-C wired |
| Bluetooth Device Name | Keychron Q1 HE |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| Wireless Working Time (Backlit off) | Up to 180 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 30 hours (Lowest brightness) |
| Charging Time | Around 5 hours |
| Bluetooth Version | 5.1 |
| Compatible System | Windows/macOS/Linux |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
| Keycaps (Fully Assembled Version) | OSA Double-shot keycaps, not shine-through |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402RC (256KB Flash) |
| Switches | Gateron 2.0 magnetic switch |
| Backlight | South-facing RGB LED |
| Stabilizer | Screw-in PCB stabilizer |
| Charging Port | USB Type-C |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Operating Environment | -10℃ to 50℃ |
| Cable Length | 1.8 m |
| Charging Port | USB type-C |
Learn more about the Keychron Q1 HE such as the Q1 HE shortcuts, assembling the Q1 HE, factory reset, and more in the FAQ section.
