Keychron Q11 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron Q11 QMK Custom Mechanical Keyboard ISO Layout Collection - Fully Assembled Knob (Carbon Black) / ES-ISO / Keychron K Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The fully assembled version includes:
-
The keyboard PCB and case (the plate is integrated with the case).
- Backlight shine-through OSA ABSÂ keycaps (including Mac & Windows keycaps).
- Keychron KÂ Pro switches.
No discount codes can be used for Q11.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron Q11 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron Q11
ISO Layout Versions
Coming in a 75% layout and a split design, the Q11 helps you to explore the angles and positions that fit you the best. With its full metal CNC machined body, QMK/VIA support, and unique design, the Q11 is ideal for fulfilling your typing needs!

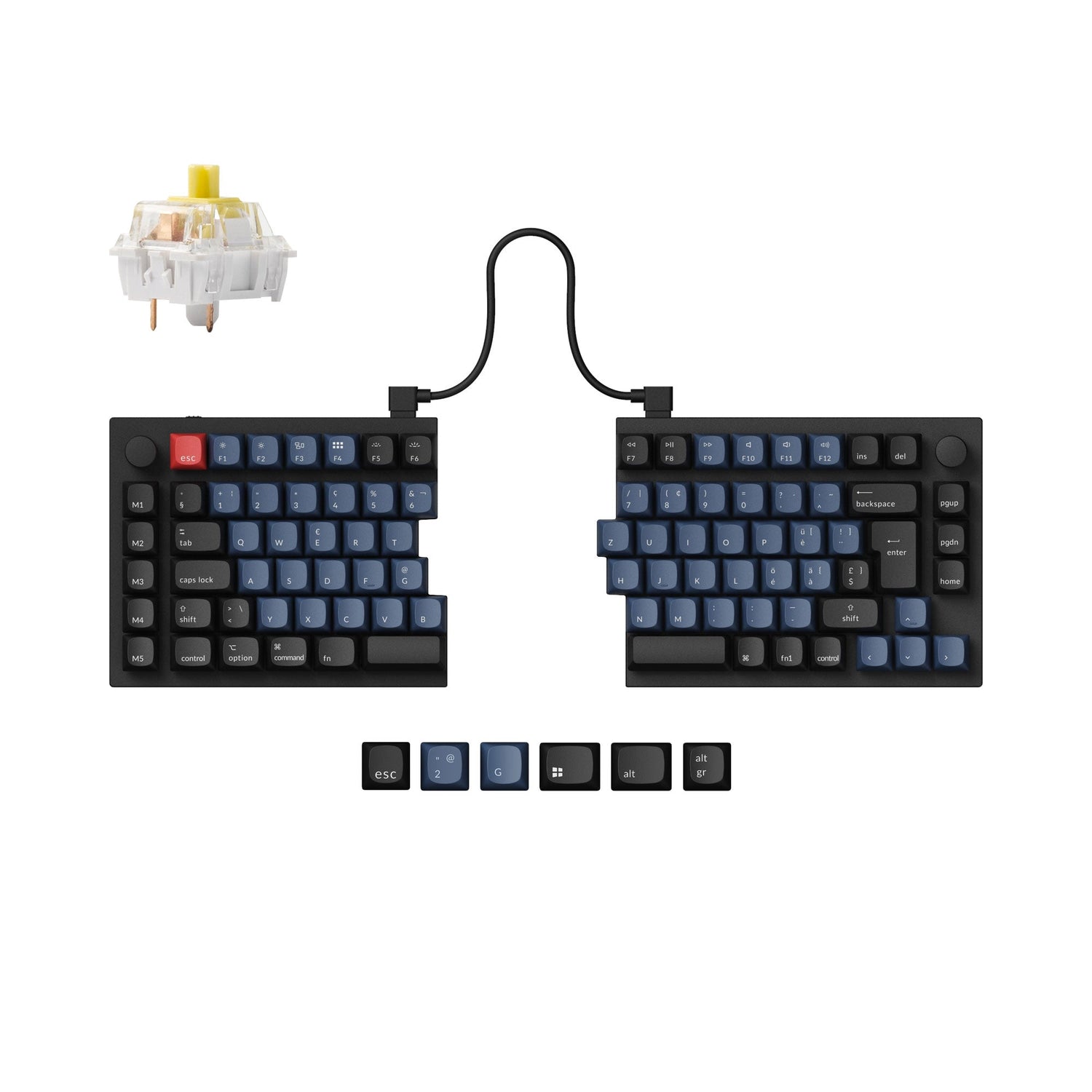

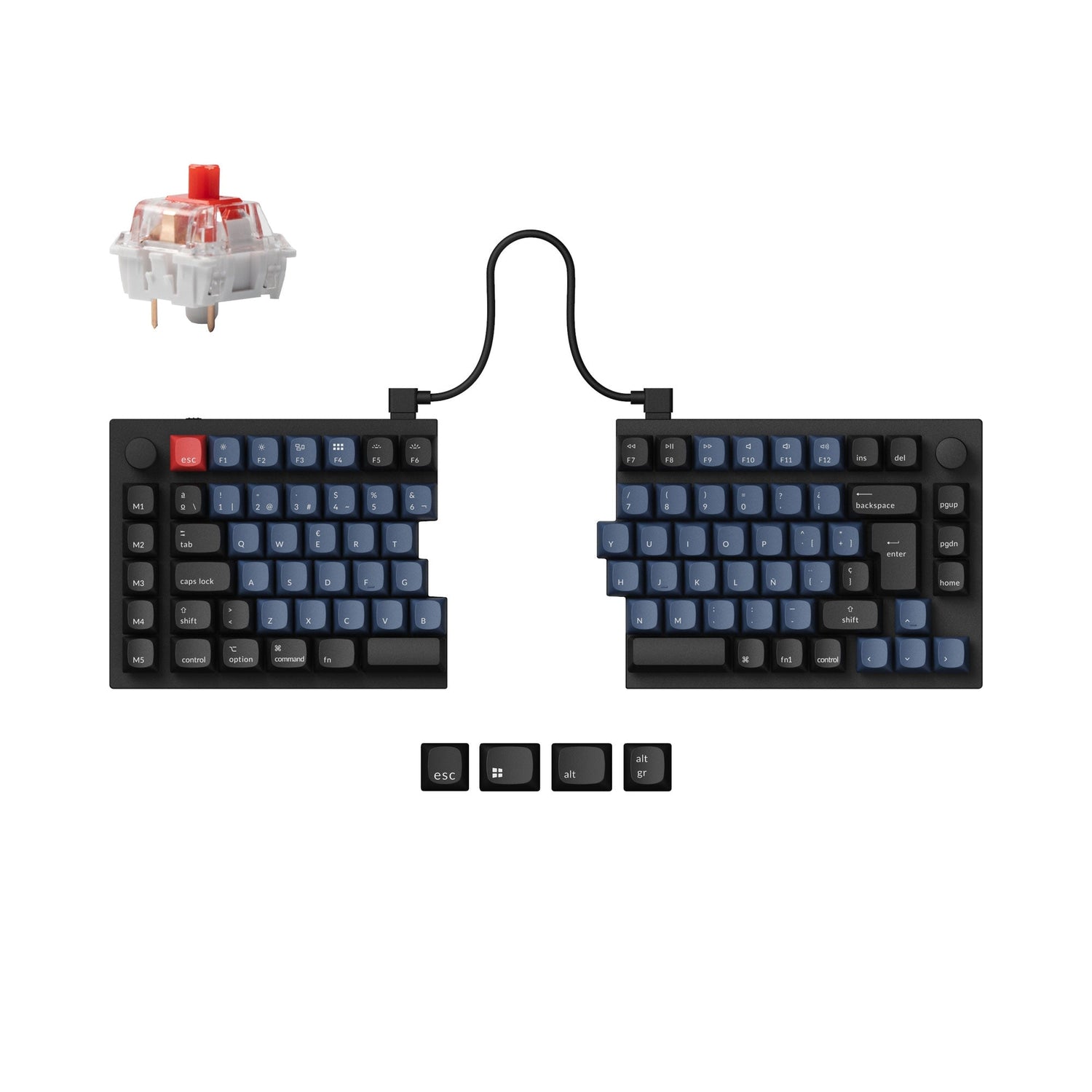

Split Design
With a split layout, the Q11 allows you to position each side where you feel most sensible and ergonomic. You can also use it as a non-split keyboard by linking the two halves with a bridge cable.
Use the left half solely.
Use the right half solely.
Read blog Why is the split keyboard good for you?
Choose the keycaps, switches, and more accessories for your Q11 ISO layout keyboard
Q11 ISO Layout Version
These versions include the UK, German, Swiss, Nordic, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

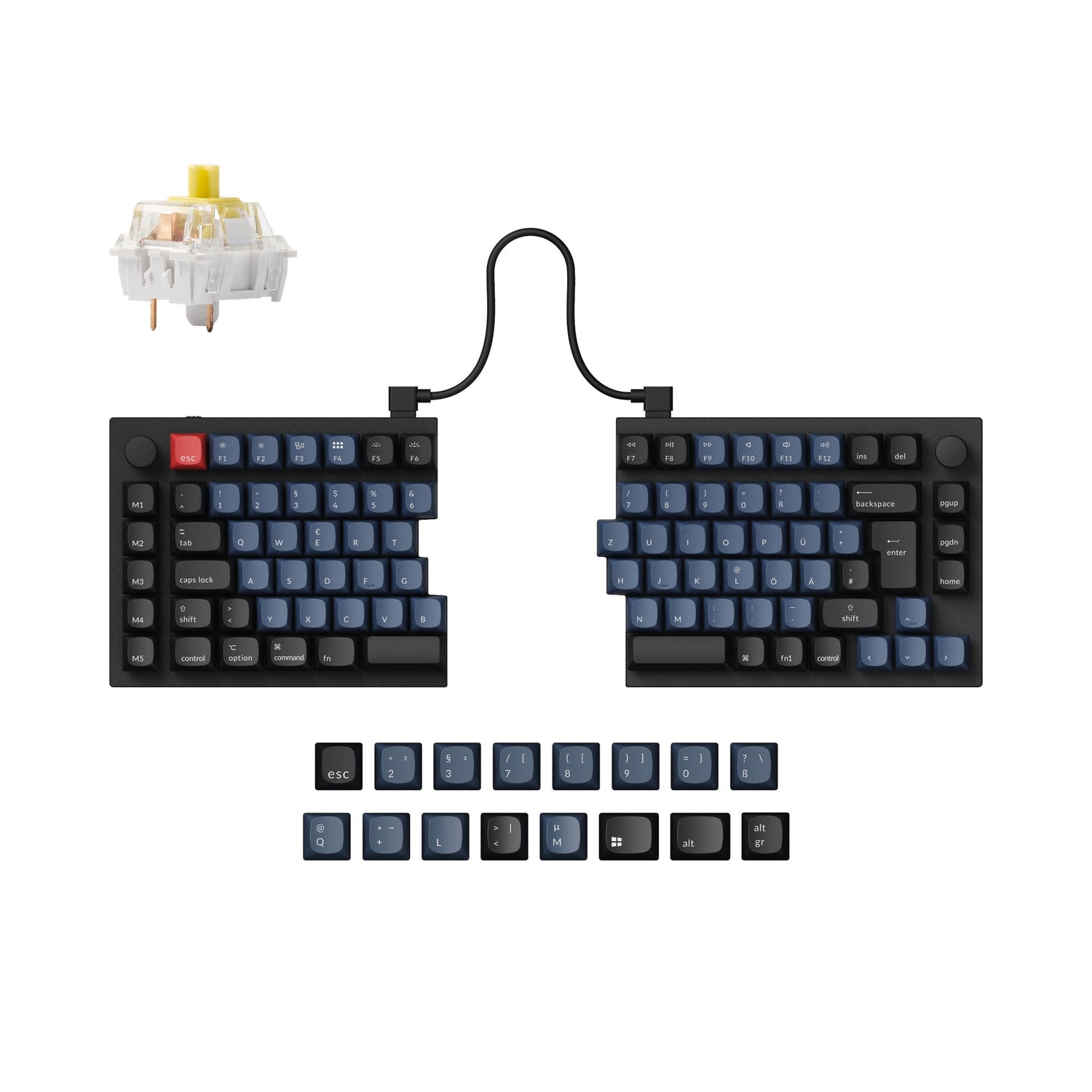

🇩🇪 DE-ISO Layout

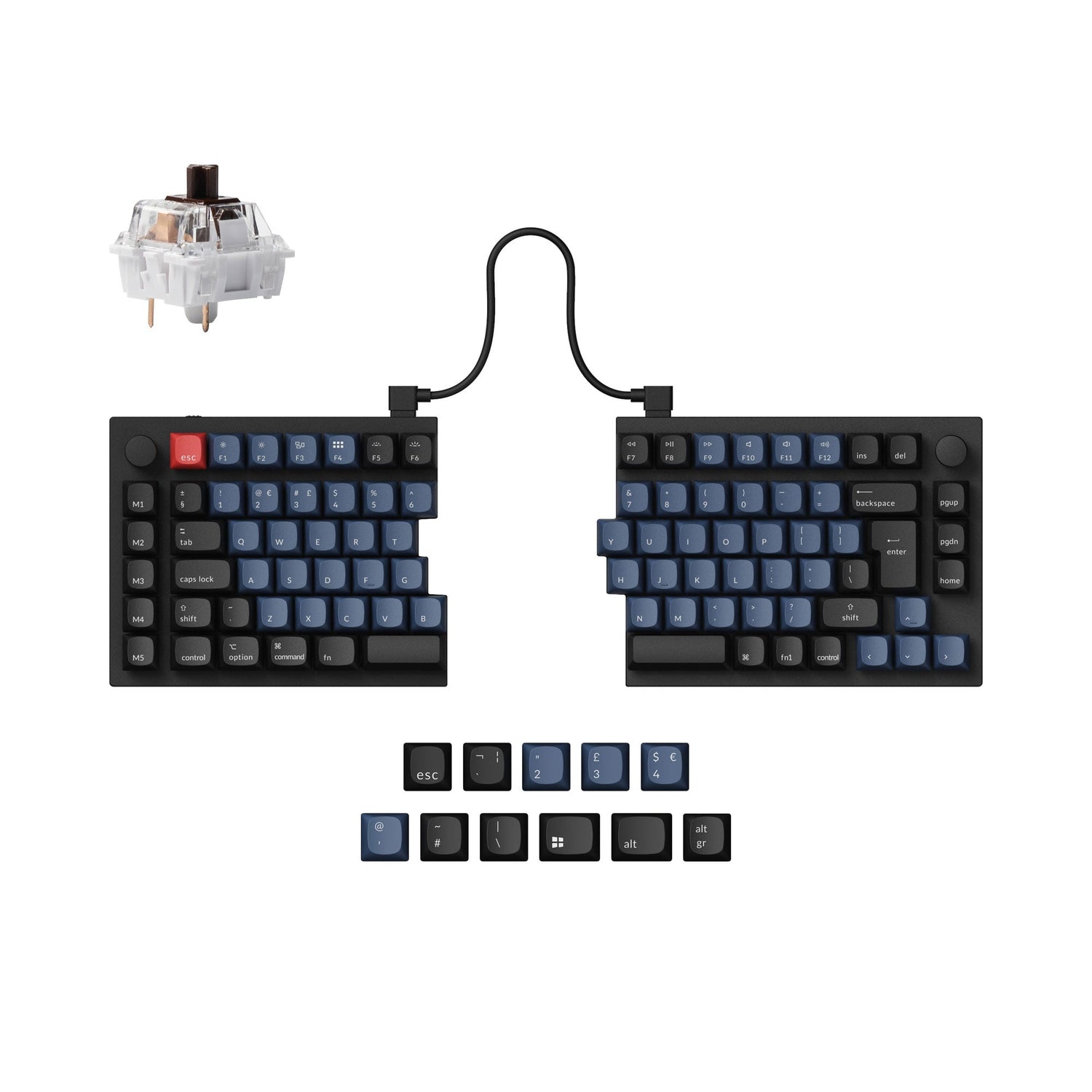

🇬🇧 UK-ISO Layout

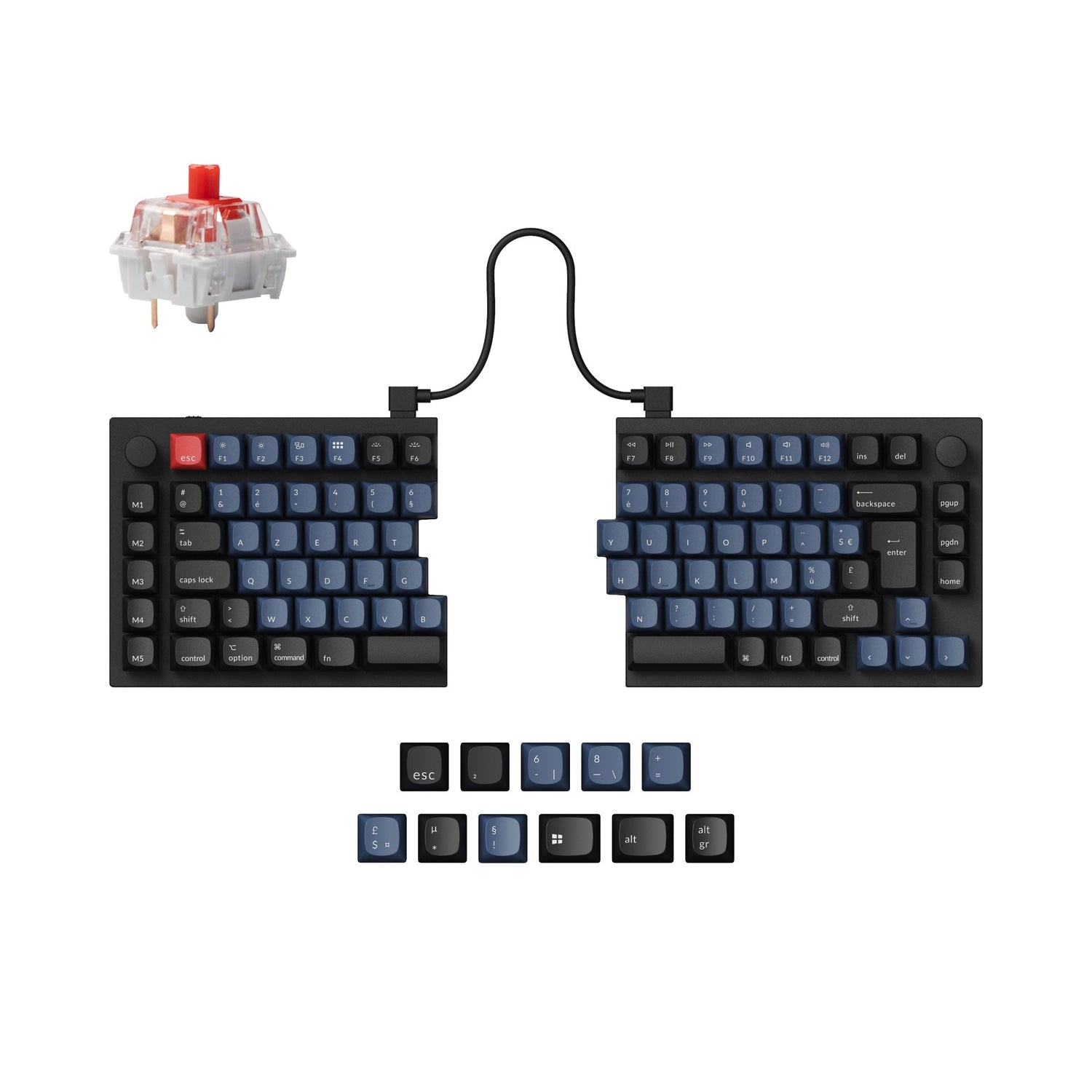

🇫🇷 FR-ISO Layout

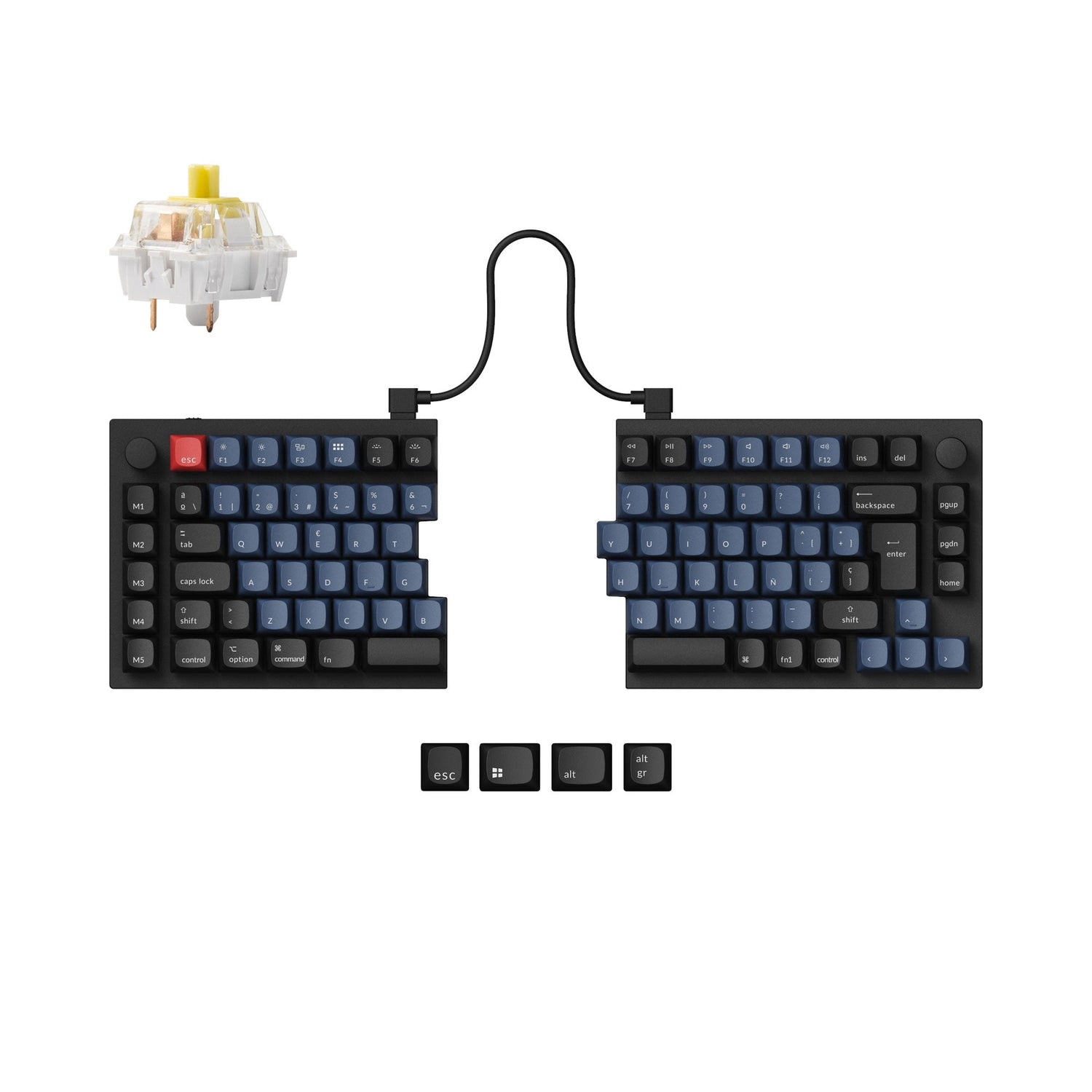

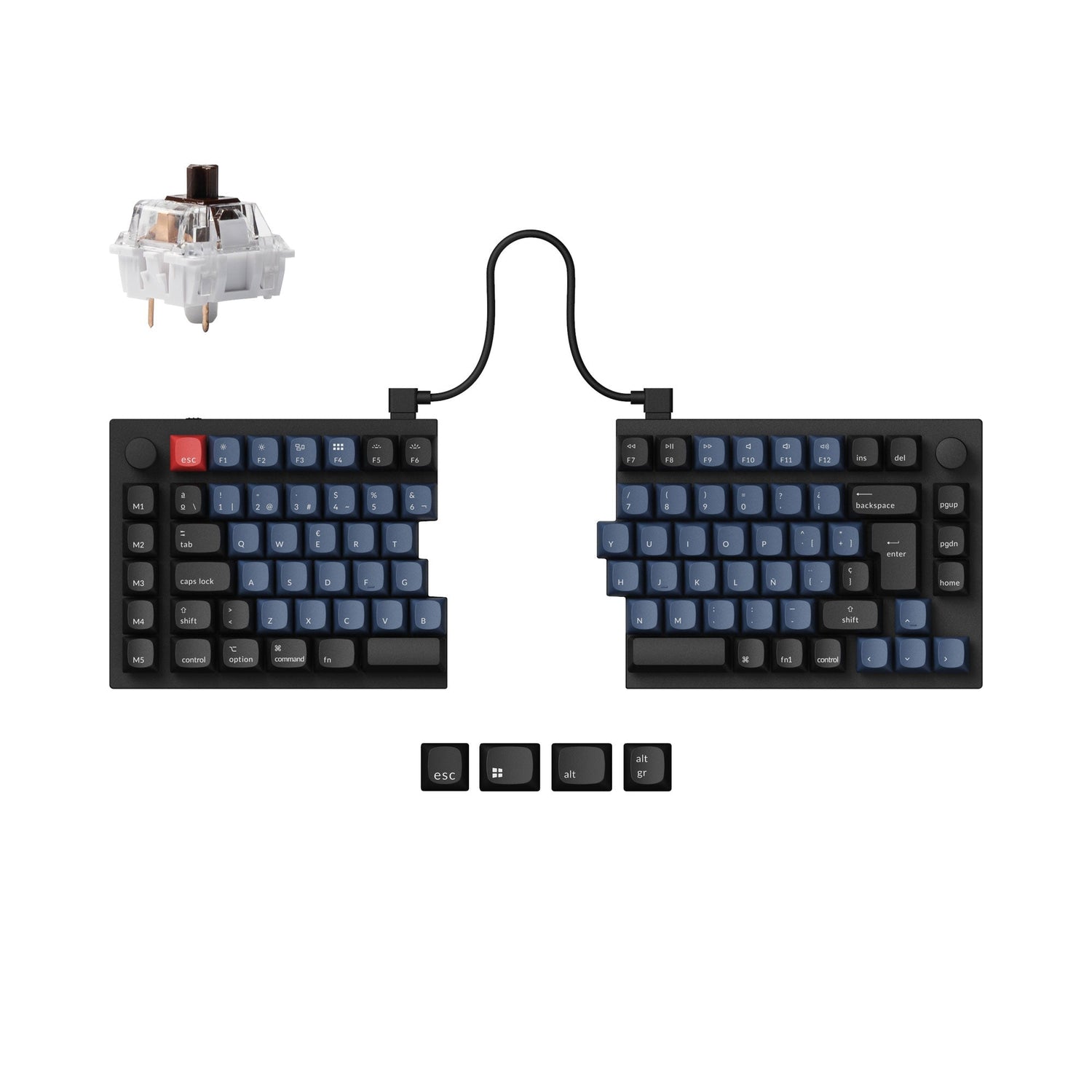

🇪🇸 ES-ISO Layout

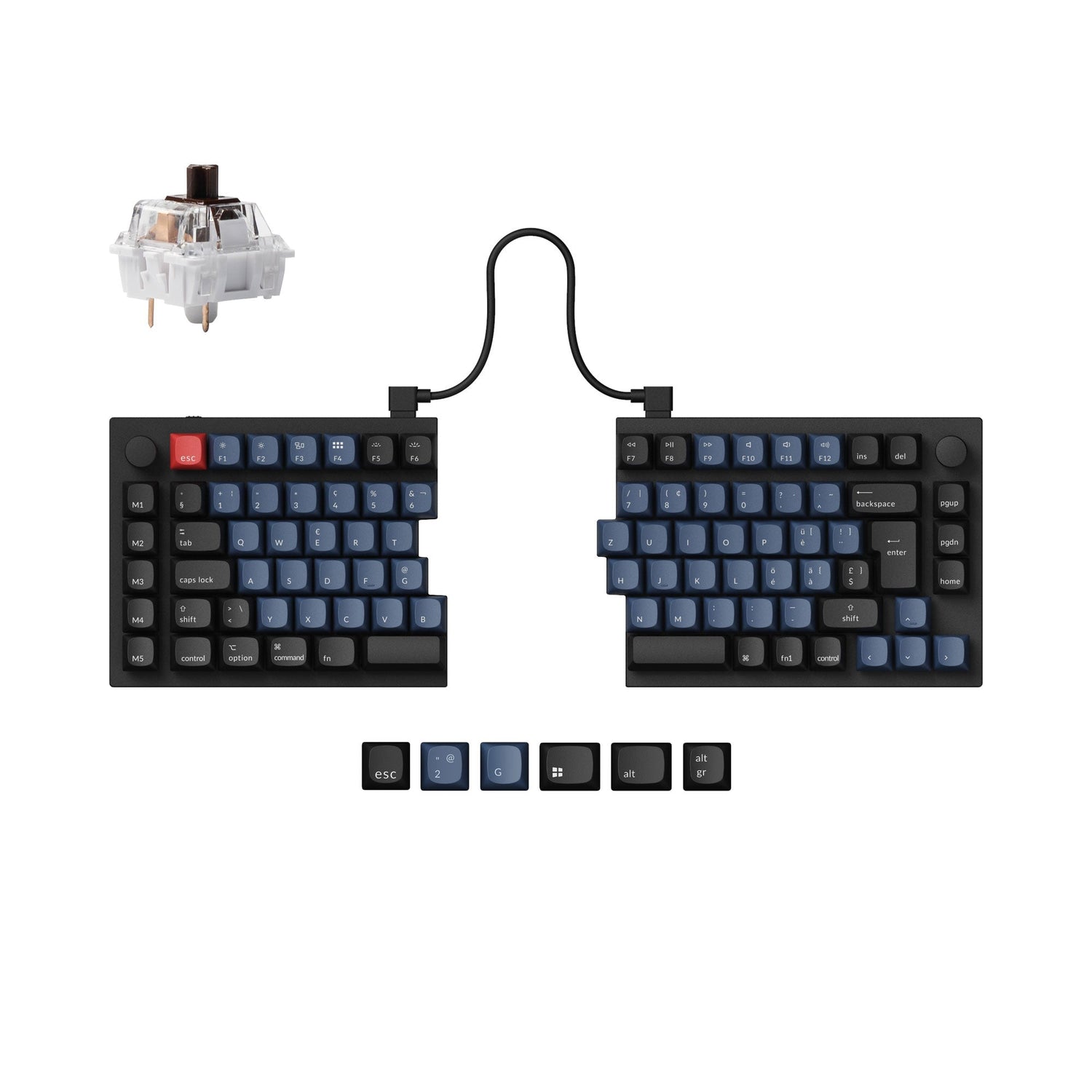

🇨🇠Swiss-ISO Layout

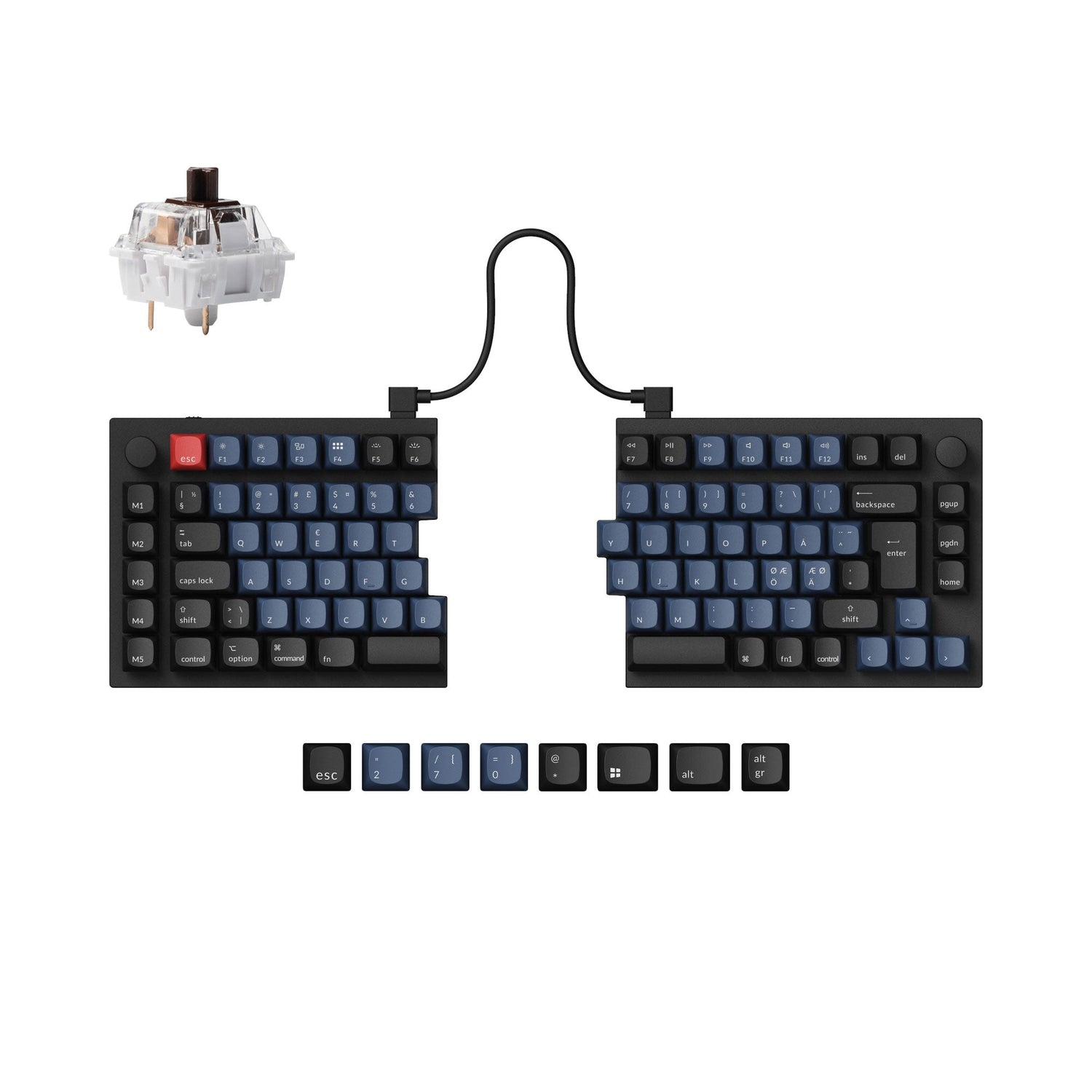

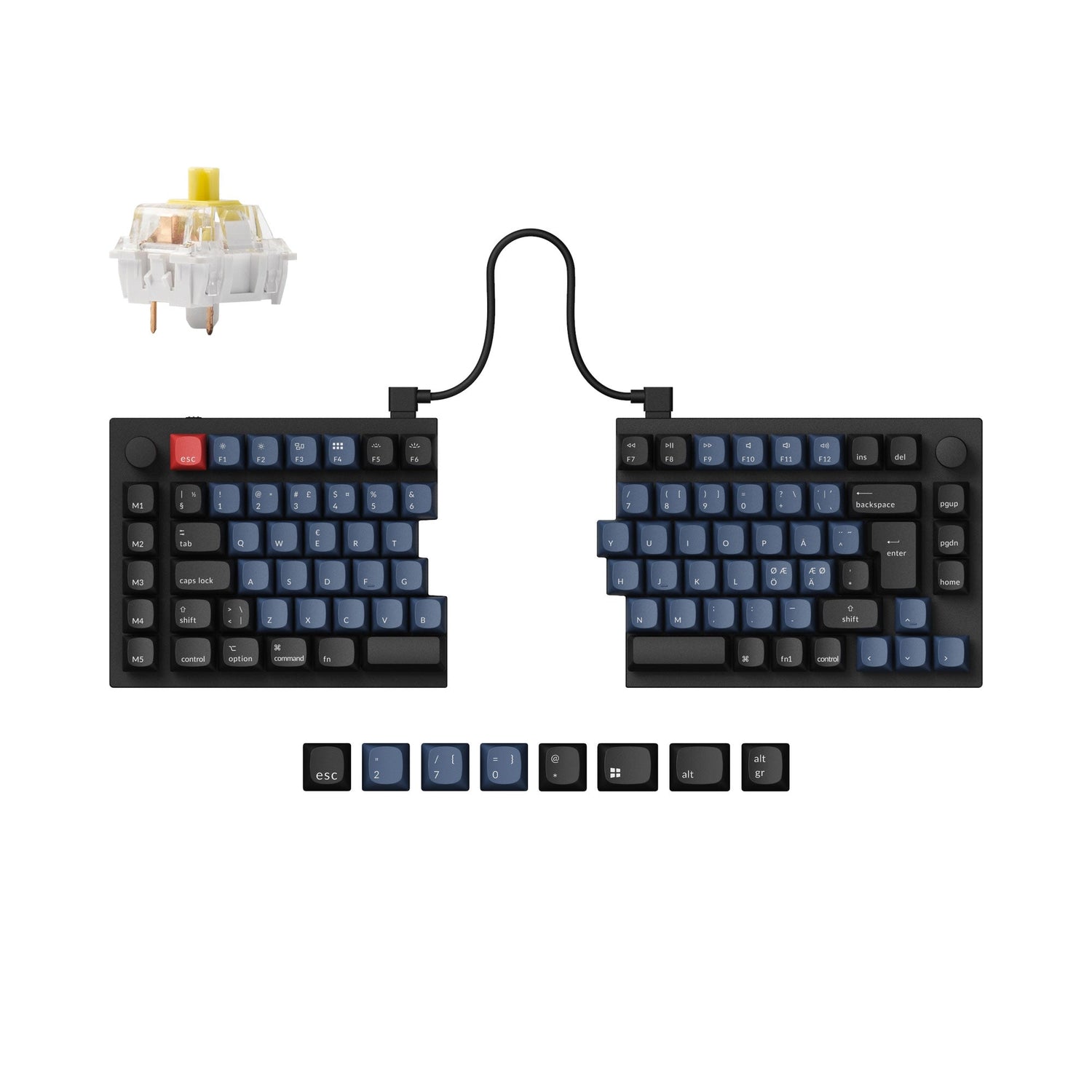

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q11.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the Q11 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q11 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Programmable Knob
Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q11's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Setting the macros for "zoom in/out"
Using the knob as "zoom in/out"
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Click here to use Keychron Launcher* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the Keychron K Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness. Not to mention the banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q11 also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 134Â mm |
|---|---|
| Length | 345 mm |
| Front Height | 9.8 mm (without keycaps) |
| Back Height | 16.3 mm (without keycaps) |
| Feet Height | 1.5 mm |
| Angle | 2.8° |
| Weight | 1186 g ± 10g (the fully assembled weight) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Layout | DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO |
| Keycaps (Fully Assembled Version) | Backlight shine-through ABS keycaps, OSA Profile (OEM height, SA shape) |
|---|---|
| Switches | Keychron K Pro (fully assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron Q11 such as the Q11 shortcuts, assembling the Q11, factory reset, and more in the FAQ section.
